Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

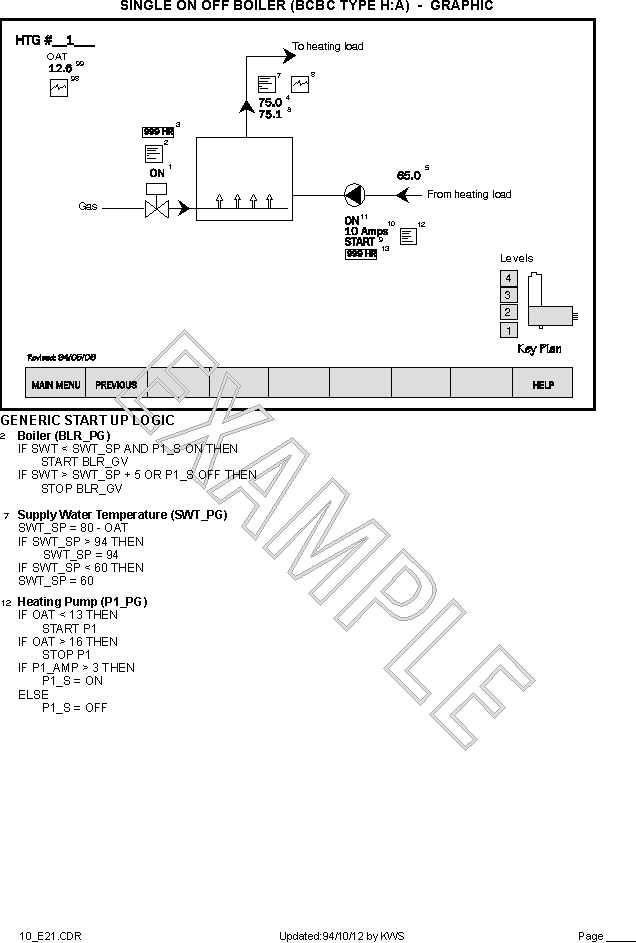

| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | Point Type | Hardware Point | Virtual Point | Notes See Page # | Note # | |||||
| Point Description | System | Point | D0 | D1 | A0 | A1 | Comments | ||||
| 1 | Boiler Gas Valve | HTG1 | BLR_GV | CR1 | 1 | . | . | . | . | . | . |
| 2 | Boiler Control Program | HTG1 | BLR_PG | PG | . | . | . | . | 1 | . | . |
| 3 | Boiler Run Hours | HTG1 | BLR_TZ | TZ | . | . | . | . | 1 | . | . |
| 4 | Supply Water Temperature | HTG1 | SWT | PTS1 | . | . | . | 1 | . | . | . |
| 5 | Return Water Temperature | HTG1 | RWT | PTS1 | . | . | . | 1 | . | . | . |
| 6 | Supply Water Setpoint | HTG1 | SWT_SP | V | . | . | . | . | 1 | . | . |
| 7 | Supply Water Program | HTG1 | SWT_PG | PG | . | . | . | . | 1 | . | . |
| 8 | Heating System Trendlog | HTG1 | TL | TL | . | . | . | . | 1 | "SWT,SWT_SP,RWT,OAT" | . |
| 9 | Heating Pump Control | HTG1 | P1 | CR1 | 1 | . | . | . | . | . | . |
| 10 | Heating Pump Amps | HTG1 | P1_AMP | CS1 | . | . | . | 1 | . | . | . |
| 11 | Heating Pump Status | HTG1 | P1_S | V | . | . | . | . | 1 | . | . |
| 12 | Heating Pump Program | HTG1 | P1_PG | PG | . | . | . | . | 1 | . | . |
| 13 | Heating Pump Run Hours | HTG1 | P1_TZ | TZ | . | . | . | . | 1 | . | . |
| . | . | . | . | . | 2 | 0 | 0 | 3 | 8 | . | . |
