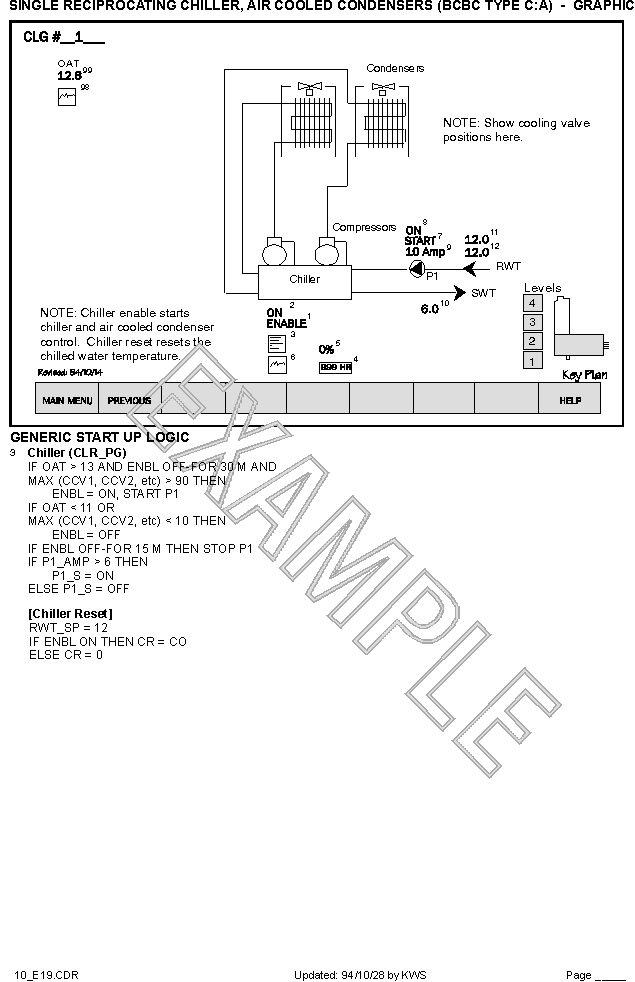

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.
| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | Point Type | Hardware Point | Virtual Point | Notes See Page # | Note # | |||||
| Point Description | System | Point | D0 | D1 | A0 | A1 | Comments | ||||
| 1 | Chiller Control | CLG1 | ENBL | CR1 | 1 | . | . | . | . | . | . |
| 2 | Chiller Status | CLG1 | S | CRS | . | 1 | . | . | . | . | . |
| 3 | Chiller Program | CLG1 | PG | PG | . | . | . | . | 1 | . | . |
| 4 | Chiller Run Hours | CLG1 | TZ | TZ | . | . | . | . | 1 | . | . |
| 5 | Chiller Reset | CLG1 | CR | DDC | . | . | 1 | . | . | . | . |
| Chiller Controller | CLG1 | CO | CO | . | . | . | . | 1 | use RWT:RWT_SP | . | |
| 6 | Chiller Trendlog | CLG1 | TL | TL | . | . | . | . | 1 | "CR,SWT,RWT,ENBL" | . |
| 7 | Chilled Water Pump | CLG1 | P1 | CR1 | 1 | . | . | . | . | . | . |
| 8 | Chilled Water Pump Status | CLG1 | P1_S | CRS | . | 1 | . | . | . | . | . |
| 9 | Chilled Water Pump Amps | CLG1 | P1_AMP | CS1 | . | . | . | 1 | . | . | . |
| 10 | Supply Water Temperature | CLG1 | SWT | PTS1 | . | . | . | 1 | . | . | . |
| 11 | Return Water Temperature | CLG1 | RWT | PTS1 | . | . | . | 1 | . | . | . |
| 12 | Return Water Setpoint | CLG1 | RWT_SP | V | . | . | . | . | 1 | . | . |
| . | . | . | . | . | 2 | 2 | 1 | 3 | 5 | . | . |
