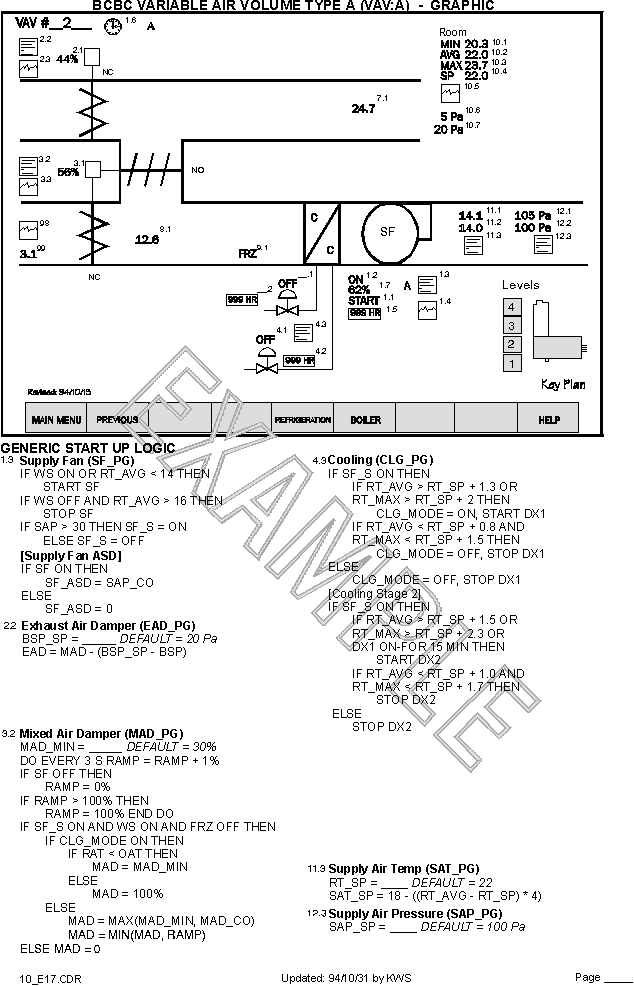

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:

Graphic Logic Location Point Name Mnemonic Point Type Hardware Point Virtual Point Notes See Page # Note #

  Point Description System Point D0 D1 A0 A1 Comments

1.1 Supply Fan Start/Stop VAV2 SF CR1 1 . . . . . .
1.2 Supply Fan Status VAV2 SF_S V . . . . 1 . .
1.3 Supply Fan Program VAV2 SF_PG PG . . . . 1 . .
1.4 Supply Fan Trendlog VAV2 SF_TL TL . . . . 1 "SF,SF_ASD,SAT,SAP" .
1.5 Supply Fan Run Hours VAV2 SF_TZ TZ . . . . 1 . .
1.6 Weekly Schedule VAV2 WS WS . . . . 1 . .
1.7 Supply Fan ASD VAV2 SF_ASD DDC . . 1 . . . .
2.1 Exhaust Air Damper VAV2 EAD DA2 . . 1 . . . .
2.2 Exhaust Air Damper Program VAV2 EAD_PG PG . . . . 1 . .
2.3 Exhaust Air Damper Trendlog VAV2 EAD_TL TL . . . . 1 "EAD,BSP,MAD,BSP_SP" .
3.1 Mixed Air Damper VAV2 MAD DA2 . . 1 . . . .
. Mixed Air Damper Controller VAV2 MAD_CO CO . . . . 1 use SAT:SAT_SP .
. Mixed Air Damper Minimum VAV2 MAD_MIN V . . . . 1 . .
. Mixed Air Damper Ramp VAV2 RAMP V . . . . 1 . .
3.2 Mixed Air Program VAV2 MAD_PG PG . . . . 1 . .
3.3 Mixed Air Trendlog VAV2 MAD_TL TL . . . . 1 "SF_S,FRZ,MAD,MAT" .
. Cooling Mode VAV2 CLG_MODE V . . . . 1 . .
4.1 Stage 1-DX VAV2 DX1 CR1 1 . . . . . .
4.2 DX1 Run Hours VAV2 DX1_TZ TZ . . . . 1 . .
4.3 DX Program VAV2 CLG_PG PG . . . . 1 . .
__.1 Stage-DX VAV2 DX__ CR1 . . . . . As Required .
__.2 DXRun Hours VAV2 DX_TZ TZ . . . . . As Required .
7.1 Return Air Temperature . RAT DTS2 . . . 1 . . .
8.1 Mixed Air Temperature . MAT DTS1 . . . 1 . . .
9.1 Freeze Control . FRZ FRZ . 1 . . . . .
10.1 Room Temperature Minimum . RT_MIN V . . . . 1 . .
10.2 Room Temperature Average . RT_AVG V . . . . 1 . .
10.3 Room Temperature Maximum . RT_MAX V . . . . 1 . .
10.4 Room Temperature Setpoint . RT_SP V . . . . 1 . .
10.5 Room Temperature Trendlog . RT_TL TL . . . . 1 "SAT,MIN,AVG,MAX" .
10.6 Building Pressure . BSP DPS . . . 1 . . .
10.7 Building Pressure Setpoint . BSP_SP V . . . . 1 . .
11.1 Supply Air Temperature . SAT DTS2 . . . 1 . . .
11.2 Supply Air Temp Setpoint . SAT_SP V . . . . 1 . .
11.3 Supply Air Temp Program . SAT_PG PG . . . . 1 . .
12.1 Supply Air Pressure . SAP DPS . . . 1 . . .
12.2 Supply Air Pressure Setpoint . SAP_SP V . . . . 1 . .
12.3 Supply Air Pressure Program . SAP_PG PG . . . . 1 . .
. Supply Air Pressure Controller . SAP_CO CO . . . . 1 use SAP:SAP_SP .
  Total   2 1 3 5 26
