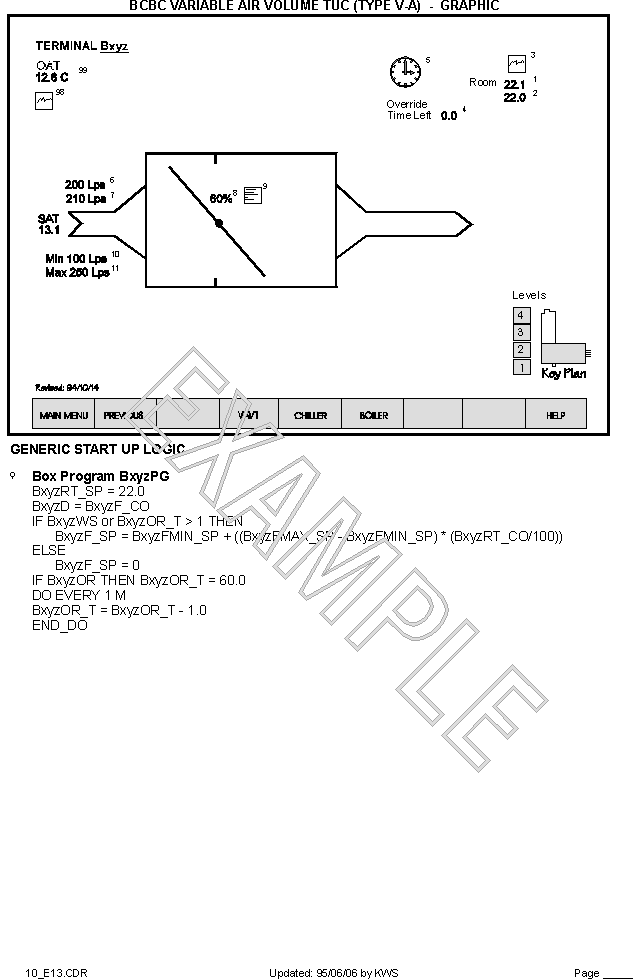

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:

Graphic Logic Location Point Name Mnemonic Point Type Hardware Point Virtual Point Notes See Page # Note #

  Point Description System Point D0 D1 A0 A1 Comments

1 Room Temperature VAV# BxyzRT RTS1 . . . 1 . . .
2 Room Temperature Setpoint VAV# BxyzRT_SP V . . . . 1 . .
3 Room Trendlog VAV# BxyzRT_TL TL . . . . 1 "RT,RT_SP,F,F_SP" .
  Room Override VAV# BxyzOR CRS . 1 . . . . .
4 Room Override Time Left VAV# BxyzOR_T V . . . . 1 Set 60 min .
5 Room Weekly Schedule VAV# BxyzWS WS . . . . . See Spec 15925 .
6 Flow VAV# BxyzF FS . . . 1 . . .
7 Flow Setpoint VAV# BxyzF_SP V . . . . 1 . .
8 Damper VAV# BxyzD DA1 . . 1 . . . .
  Temperature Controller VAV# BxyzRT_CO CO . . . . 1 use RT:RT_SP .
  Flow Controller VAV# BxyzF_CO CO . . . . 1 use F:F_SP .
9 Program VAV# BxyzPG PG . . . . 1 . .
10 Minimum Flow Setpoint VAV# BxyzFMIN_SP V . . . . 1 . .
11 Maximum Flow Setpoint VAV# BxyzFMAX_SP V . . . . 1 . .
  Total   0 1 1 2 9
NOTE: x = Floor # . . . . . . . . . . .
yz = Box # of Floor # . . . . . . . . . . .
For VAV# and Box # see mechanical schedule . . . . . . . . . . .
