Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:

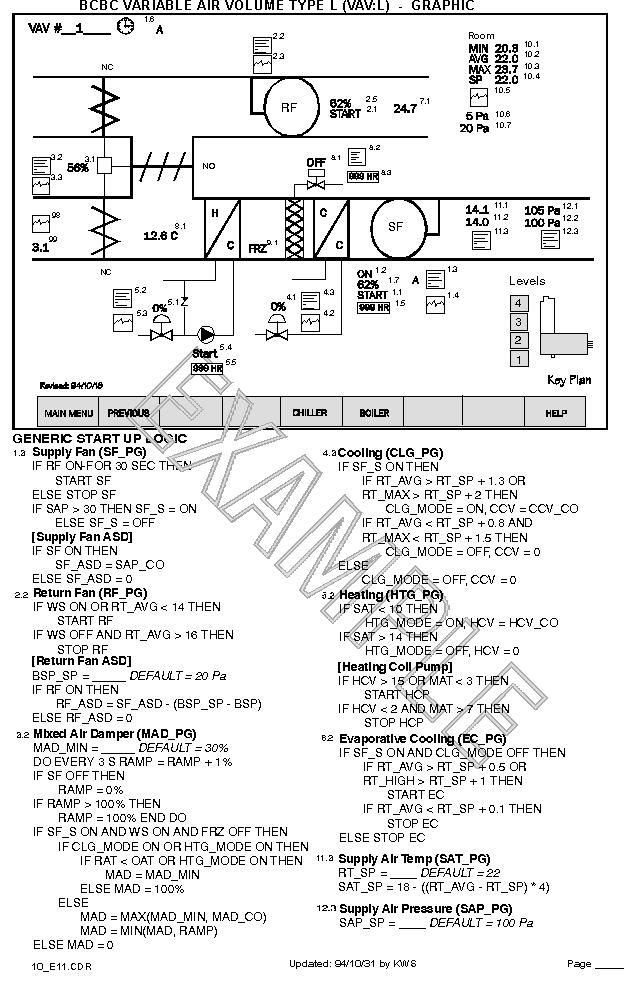

Graphic Logic Location Point Name Mnemonic Point Type Hardware Point Virtual Point Notes See Page # Note #

  Point Description System Point D0 D1 A0 A1 Comments

1.1 Supply Fan Start/Stop VAV1 SF CR1 1 . . . . . .
1.2 Supply Fan Status VAV1 SF_S V . . . . 1 . .
1.3 Supply Fan Program VAV1 SF_PG PG . . . . 1 . .
1.4 Supply Fan Trendlog VAV1 SF_TL TL . . . . 1 "SF,SF_ASD,SAT,SAP" .
1.5 Supply Fan Run Hours VAV1 SF_TZ TZ . . . . 1 . .
1.6 Weekly Schedule VAV1 WS WS . . . . 1 . .
1.7 Supply Fan ASD VAV1 SF_ASD DDC . . 1 . . . .
2.1 Return Fan Start/Stop VAV1 RF CR1 1 . . . . . .
2.2 Return Fan Program VAV1 RF_PG PG . . . . 1 . .
2.3 Return Fan Trendlog VAV1 RF_TL TL . . . . 1 "RF,RAT,BSP,ASD" .
2.5 Return Fan ASD VAV1 RF_ASD DDC . . 1 . . . .
3.1 Mixed Air Damper VAV1 MAD DA2 . . 1 . . . .
. Mixed Air Damper Controller VAV1 MAD_CO CO . . . . 1 use SAT:SAT_SP .
. Mixed Air Damper Minimum VAV1 MAD_MIN V . . . . 1 . .
. Mixed Air Damper Ramp VAV1 RAMP V . . . . 1 . .
3.2 Mixed Air Program VAV1 MAD_PG PG . . . . 1 . .
3.3 Mixed Air Trendlog VAV1 MAD_TL TL . . . . 1 "SF_S,FRZ,MAD,MAT" .
. Cooling Mode VAV1 CLG_MODE V . . . . 1 . .
4.1 Cooling Coil Valve VAV1 CCV CV3 . . 1 . . . .
. Cooling Coil Controller VAV1 CCV_CO CO . . . . 1 use SAT:SAT_SP .
4.2 Cooling Coil Trendlog VAV1 CLG_TL TL . . . . 1 "CCV,SAT_SP,SAT,EC" .
4.3 Cooling Coil Program VAV1 CCV_PG PG . . . . 1 . .
. Heating Mode VAV1 HTG_MODE V . . . . 1 . .
5.1 Heating Coil Valve VAV1 HCV CV3 . . 1 . . . .
. Heating Coil Controller VAV1 HCV_CO CO . . . . 1 use SAT:SP = 12 .
5.2 Heating Program VAV1 HTG_PG PG . . . . 1 . .
5.3 Heating Coil Valve Trendlog VAV1 HCV_TL TL . . . . 1 "HCV,SAT_SP,SAT,HCP" .
5.4 Heating Coil Pump VAV1 HCP CR1 1 . . . . . .
5.5 Heating Coil Pump Run Hours VAV1 HCP_TZ TZ . . . . 1 . .
6.1 Evaporative Cooling VAV1 EC CR1 1 . . . . . .
6.2 Evaporative Cooling Program VAV1 EC_PG PG . . . . 1 . .
6.3 Evaporative Cooling Run Hours VAV1 EC_TZ TZ . . . . 1 . .
7.1 Return Air Temperature VAV1 RAT DTS2 . . . 1 . . .
8.1 Mixed Air Temperature VAV1 MAT DTS1 . . . 1 . . .
9.1 Freeze Control VAV1 FRZ FRZ . 1 . . . . .
10.1 Room Temperature Minimum VAV1 RT_MIN V . . . . 1 . .
10.2 Room Temperature Average VAV1 RT_AVG V . . . . 1 . .
10.3 Room Temperature Maximum VAV1 RT_MAX V . . . . 1 . .
10.4 Room Temperature Setpoint VAV1 RT_SP V . . . . 1 . .
10.5 Room Temperature Trendlog VAV1 RT_TL TL . . . . 1 "SAT,MIN,AVG,MAX" .
10.6 Building Pressure VAV1 BSP DPS . . . 1 . . .
10.7 Building Pressure Setpoint VAV1 BSP_SP V . . . . 1 . .
11.1 Supply Air Temperature VAV1 SAT DTS2 . . . 1 . . .
11.2 Supply Air Temp Setpoint VAV1 SAT_SP V . . . . 1 . .
11.3 Supply Air Temp Program VAV1 SAT_PG PG . . . . 1 . .
12.1 Supply Air Pressure VAV1 SAP DPS . . . 1 . . .
12.2 Supply Air Pressure Setpoint VAV1 SAP_SP V . . . . 1 . .
12.3 Supply Air Pressure Program VAV1 SAP_PG PG . . . . 1 . .
. Supply Air Pressure Controller VAV1 SAP_CO CO . . . . 1 use SAP:SAP_SP .
  Total   4 1 5 5 34
