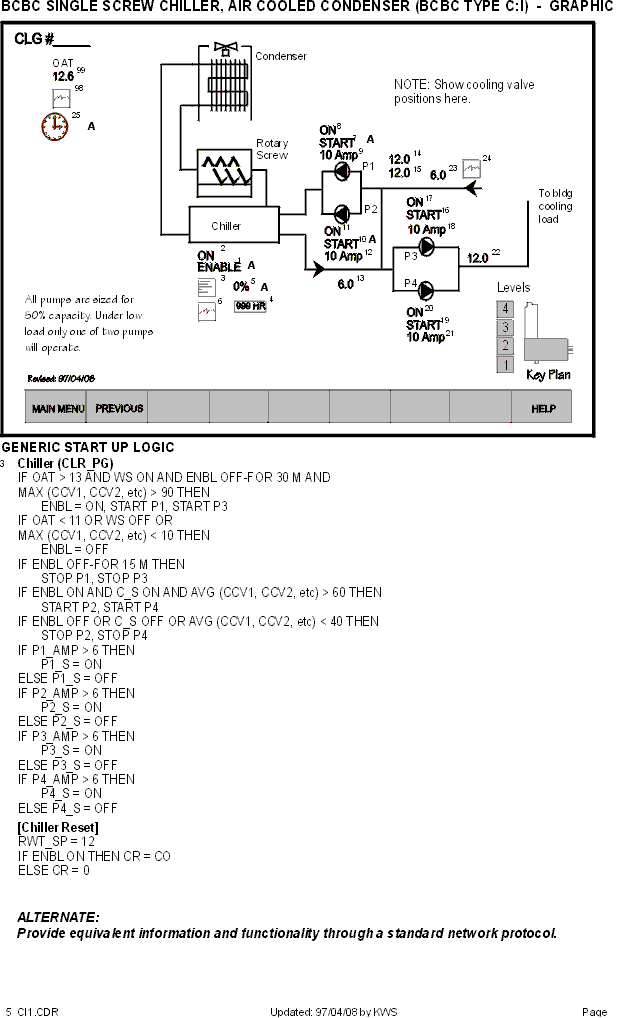

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:
Graphic Logic Location Point Name Mnemonic . Hardware Point . Notes See Page # Note #
  Point Description System Point Point Type D0 D1 A0 A1

Virtual Point

 Comments
1 Chiller Control . ENBL CR1 1 . . . . . .
2 Chiller Status . S CRS . 1 . . . . .
3 Chiller Program . PG PG . . . . 1 . .
4 Chiller Run Hours . TZ TZ . . . . 1 . .
5 Chiller Reset . CR DDC . . 1 . . . .
  Chiller Controller . CO CO . . . . 1 use RWT:RWT_SP .
6 Chiller Trendlog . TL TL . . . . 1 CR,SWT,RWT,ENBL .
7 Chilled Water Pump 1 . P1 CR1 1 . . . . . .
8 Chilled Water Pump 1 Status . P1_S V . . . . 1 . .
9 Chilled Water Pump 1 Amps . P1_AMP CS1 . . . 1 . . .
10 Chilled Water Pump 2 . P2 CR1 1 . . . . . .
11 Chilled Water Pump 2 Status . P2_S V . . . . 1 . .
12 Chilled Water Pump 2 Amps . P2_AMP CS1 . . . 1 . . .
13 Supply Water Temperature . SWT PTS1 . . . 1 . . .
14 Return Water Temperature . RWT PTS1 . . . 1   . .
15 Return Water Setpoint . RWT_SP V . . .   1 . .
16 Chilled Water Pump 3 . P3 CR1 1 . . . . . .
17 Chilled Water Pump 3 Status . P3_S V . . . . V . .
18 Chilled Water Pump 3 Amps . P3_AMP CS1 . . . 1 . . .
19 Chilled Water Pump 4 . P4 CR1 1 . . . . . .
20 Chilled Water Pump 4 Status . P4_S V . . . . 1 . .
21 Chilled Water Pump 4 Amps . P4_AMP CS1 . . . 1 . . .
22 Secondary Supply Water Temperature . S_SWT PTS1 . . . 1 . . .
23 Secondary Return Water Temperature . S_RWT PTS1 . . . 1 . . .
24 Secondary Water Trendlog . S_TL TL . . . . 1 S_SWT,S_RWT,P3_AMP,P4_AMP
24 Chiller Weekly Schedule . WS WS . . . . 1 .
  Total   5 1 1 8 11
