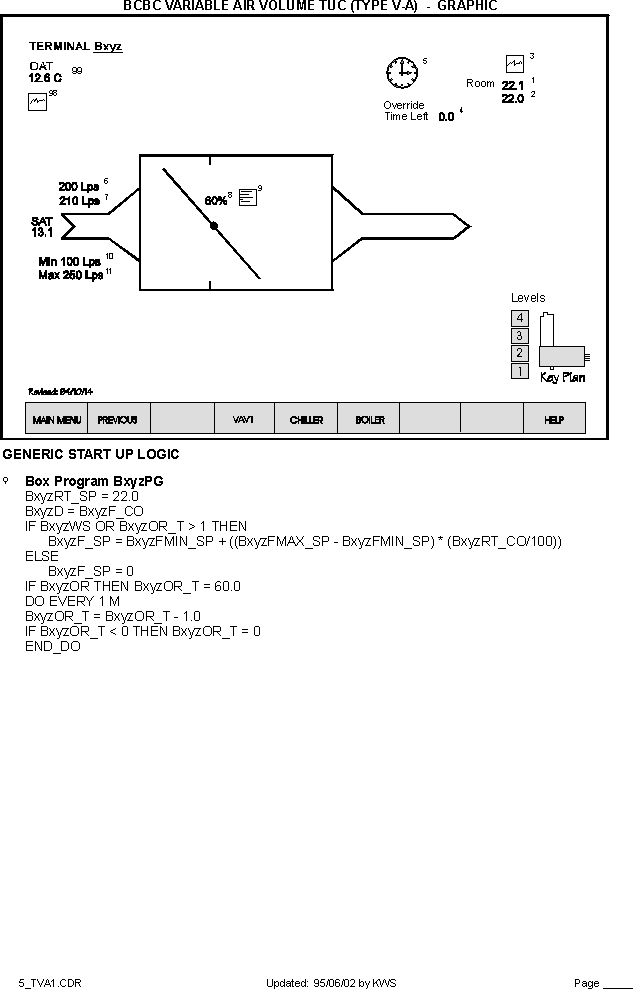

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number:		Project Name:
Graphic Logic Location		Point Name Mnemonic		.	Hardware Point				.	Notes See Page #	Note #
	Point Description	System	Point	Point Type	D0	D1	A0	A1	Point Type	Comments
1	Room Temperature	.	BxyzRT	RTS1	.	.	.	1	.	Wire OR button in parallel	.
2	Room Temperature Setpoint	.	BxyzRT_SP	V	.	.	.	.	1	.	.
3	Room Trendlog	.	BxyzRT_TL	TL	.	.	.	.	1	RT,RT_SP,F,F_SP	.
4	Room Override	.	BxyzOR	V	.	.	.	.	1	.	.
5	Room Weekly Schedule	.	BxyzWS	WS	.	.	.	.	.	See Spec 15925	.
6	Flow	.	BxyzF	FS	.	.	.	1	.	.	.
7	Flow Setpoint	.	BxyzF_SP	V	.	.	.	.	1	.	.
8	Damper	.	BxyzD	DA1	.	.	1	.	.	.	.
	Temperature Controller	.	BxyzRT_CO	CO	.	.	.	.	1	use RT:RT_SP	.
	Flow Controller	.	BxyzF_CO	CO	.	.	.	.	1	use F:F_SP	.
9	Program	.	BxyzPG	PG	.	.	.	.	1	.	.
10	Minimum Flow Setpoint	.	BxyzFMIN_SP	V	.	.	.	.	1	.	.
11	Maximum Flow Setpoint	.	BxyzFMAX_SP	V	.	.	.	.	1	.	.
	Total				0	0	1	2	9


NOTE: x = Floor #	.	.	.	.	.	.	.	.	.	.	.
yz = Box # of Floor #	.	.	.	.	.	.	.	.	.	.	.
For VAV# and Box # see mechanical schedule	.	.	.	.	.	.	.	.	.	.	.
