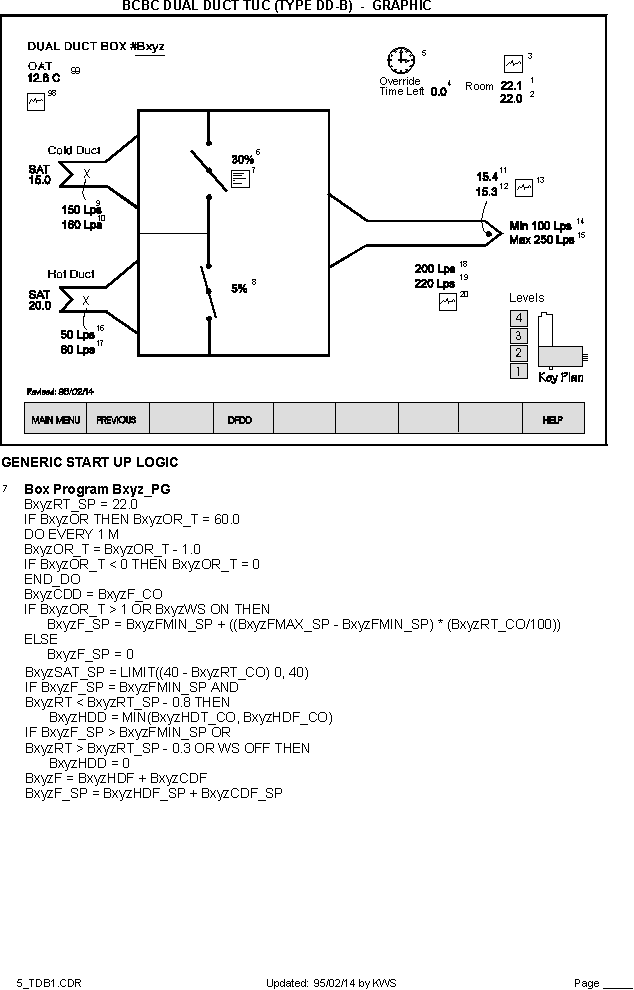

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:
Graphic Logic Location Point Name Mnemonic . Hardware Point . Notes See Page # Note #
  Point Description System Point

Point Type

 D0 D1 A0 A1

Virtual Point

 Comments
1 Room Temperature . BxyzRT RTS1 . . . 1 . .Wire OR button in parallel .
2 Room Temperature Setpoint . BxyzRT_SP V . . . . 1 . .
3 Room Trendlog . BxyzRT_TL TL . . . . 1 RT,RT_SP,F,SAT .
4 Room Override . BxyzOR V . . . . 1   .
5 Room Weekly Schedule . BxyzWS WS . . . . . See Spec 15925 .
6 Cold Duct Damper . BxyzCDD DA1 . . 1 . . . .
7 Box Program . Bxyz_PG PG . . . . 1 . .
8 Hot Duct Damper . BxyzHDD DA1 . . 1 . . . .
9 Cold Duct Flow . BxyzCDF VS2 . . . 1 . . .
10 Cold Duct Flow Setpoint . BxyzCDF_SP V . . . . 1 . .
11 Box Supply Air Temperature . BxyzSAT DTS2 . . . 1 . . .
12 Box Supply Air Temp Setpoint . BxyzSAT_SP V . . . . 1 . .
13 Box Supply Air Trendlog . BxyzSAT_TL TL . . . . 1 HDSAT,CDSAT,SAT,SAT_SP .
14 Minimum Flow Setpoint . BxyzFMIN_SP V . . . . 1 . .
15 Maximum Flow Setpoint . BxyzFMAX_SP V . . . . 1 . .
. Temperature Controller . BxyzRT_CO CO . . . . 1 use RT:RT_SP .
  Flow Controller . BxyzF_CO CO . . . . 1 use F:F_SP .
  Hot Duct Temp Controller . BxyzHDT_CO CO . . . . 1 use SAT:SAT_SP .
. Hot Duct Flow Controller . BxyzHDF_CO CO . . . . 1 use F:FMAX_SP .
16 Hot Duct Flow . BxyzHDF VS2 . . . 1 . . .
17 Hot Duct Flow Setpoint . BxyzHDF_SP V . . . . 1 . .
18 Total Box Flow . BxyzF V . . . . 1 . .
19 Total Box Flow Setpoint . BxyzF_SP V . . . . 1 . .
20 Box Flow Trendlog . Bxyz_TL V . . . . 1 HDF,CDF,F,F_SP .


Total

   0 1 2 4 17
NOTE: x = Floor # . . . . . . . . . . .
yz = Box # of Floor # . . . . . . . . . . .
For VAV# and Box # see mechanical schedule . . . . . . . . . . .
