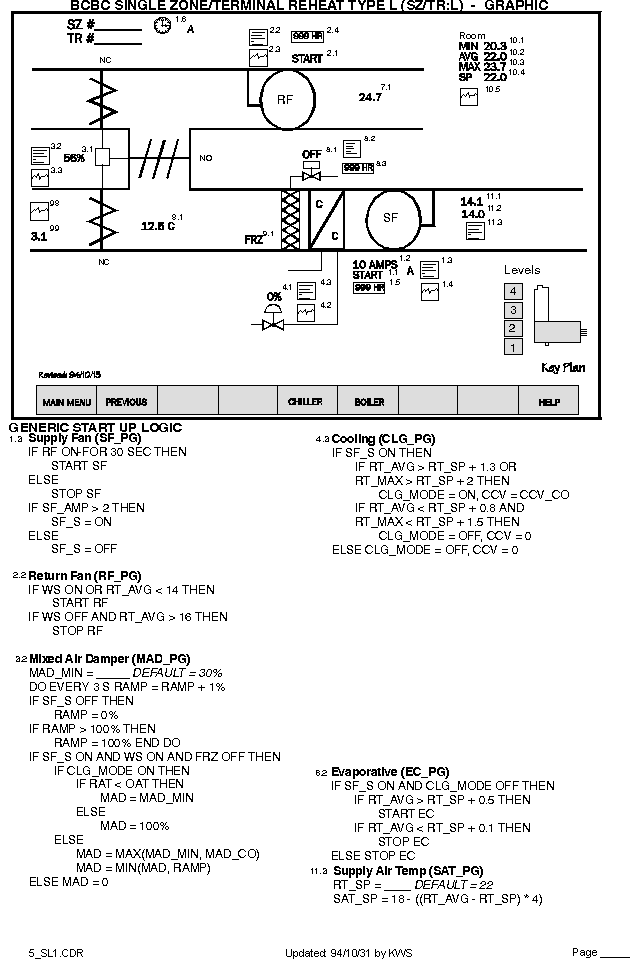

Project Number: Project Name:
Graphic Logic Location Point Name Mnemonic . Hardware Point . Notes See Page # Note #
  Point Description System Point

Point Type

 D0 D1 A0 A1

Virtual Point

 Comments
1.1 Supply Fan Start/Stop . SF CR1 1 . . . . . .
1.2 Supply Fan Amps . SF_AMP CS1 . . . 1 . . .
. Supply Fan Status . SF_S V . . . . 1 . .
1.3 Supply Fan Program . SF_PG PG . . . . 1 . .
1.4 Supply Fan Trendlog . SF_TL TL . . . . 1 SF,SF_AMP,SAT,SAT_SP .
1.5 Supply Fan Run Hours . SF_TZ TZ . . . . 1 . .
1.6 Weekly Schedule . WS WS . . . . 1 . .
2.1 Return Fan Start/Stop . RF CR1 1 . . . . . .
2.2 Return Fan Program . RF_PG PG . . . . 1 . .
2.3 Return Fan Trend Log . RF_TL TL . . . . 1 RF,RAT,OAT .
2.4 Return Fan Run Hours . RF_TZ TZ . . . . 1 . .
3.1 Mixed Air Damper . MAD DA2 . . 1 . . . .
. Mixed Air Damper Controller . MAD_CO CO . . . . 1 use SAT:SAT_SP .
. Mixed Air Damper Minimum . MAD_MIN V . . . . 1 . .
. Mixed Air Damper Ramp . RAMP V . . . . 1 . .
3.2 Mixed Air Program . MAD_PG PG . . . . 1 . .
3.3 Mixed Air Trendlog . MAD_TL TL . . . . 1 SF_S,FRZ,MAD,MAT .
. Cooling Mode . CLG_MODE V . . . . 1 . .
4.1 Cooling Coil Valve . CCV CV3 . . 1 . . . .
. Cooling Coil Controller . CCV_CO CO . . . . 1 use SAT:SAT_SP .
4.2 Cooling Coil Trendlog . CLG_TL TL . . . . 1 CCV,SAT_SP,SAT,EC .
4.3 Cooling Program . CLG_PG PG . . . . 1 . .
6.1 Evaporative Cooling . EC CR1 1 . . . . . .
6.2 Evaporative Cooling Program . EC_PG PG . . . . 1 . .
6.3 Evaporative Cooling Run Hours . EC_TZ TZ . . . . 1 . .
7.1 Return Air Temperature . RAT DTS2 . . . 1 . . .
8.1 Mixed Air Temperature . MAT DTS1 . . . 1 . . .
9.1 Freeze Status . FRZ FRZ . 1 . . . . .
10.1 Room Temperature Minimum . RT_MIN V . . . . 1 . .
10.2 Room Temperature Average . RT_AVG V . . . . 1 . .
10.3 Room Temperature Maximum . RT_MAX V . . . . 1 . .
10.4 Room Temperature Setpoint . RT_SP V . . . . 1 . .
10.5 Room Temperature Trendlog . RT_TL TL . . . . 1 SAT,MIN,AVG,MAX .
11.1 Supply Air Temperature . SAT DTS2 . . . 1 . . .
11.2 Supply Air Temp Setpoint . SAT_SP V . . . . 1 . .
11.3 Supply Air Temp Program . SAT_PG PG . . . . 1 . .


Total

   3 1 2 4 26
