Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:

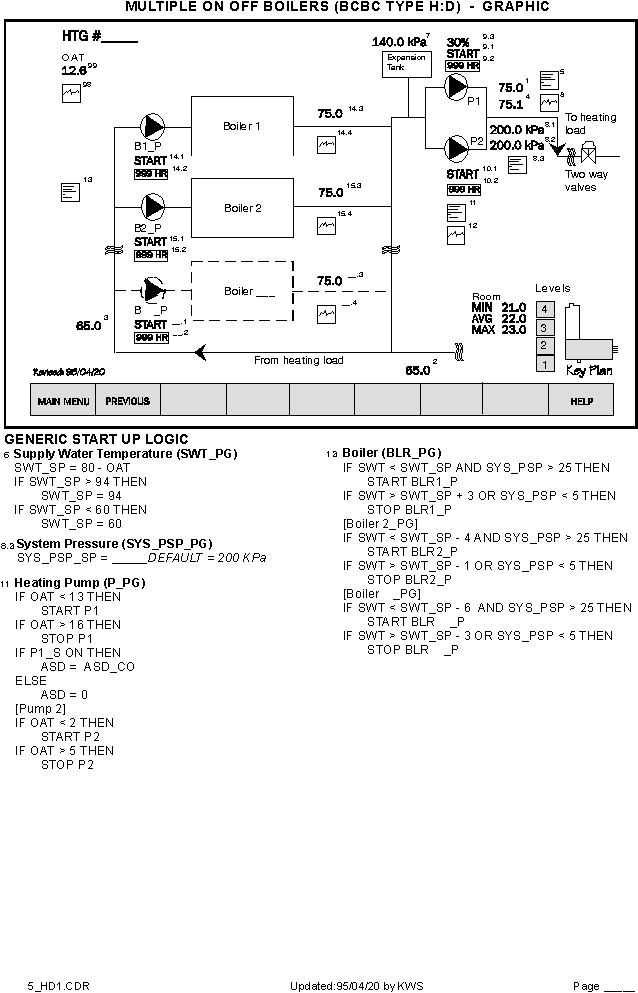

Graphic Logic Location Point Name Mnemonic . Hardware Point . Notes See Page # Note #
  Point Description System Point

Point Type

 D0 D1 A0 A1

Virtual Point

 Comments
1 Heating Supply Water Temp . SWT PTS1 . . . 1 . . .
2 Heating Return Water Temp . RWT PTS1 . . . 1 . . .
3 Boiler Return Water Temp . B_RWT PTS1 . . . 1 . . .
4 Heating Supply Water Setpoint . SWT_SP V . . . . 1 . .
5 Heating Supply Water Program . SWT_PG PG . . . . 1 . .
6 Heating Supply Water Trendlog . SWT_TL TL . . . . 1 SWT,SWT_SP,RWT,OAT .
7 Expansion Tank Pressure . XT_PSP PS1 . . . 1 . . .
8.1 System Pressure . SYS_PSP PS1 . . . 1 . . .
8.2 System Pressure Setpoint . SYS_PSP_SP V . . . . 1 . .
8.3 System Pressure Program . SYS_PSP_PG PG . . . . 1 . .
9.1 Heating Pump 1 Control . P1 CR1 1 . . . . . .
9.2 Heating Pump 1 Run Hours . P1_TZ TZ . . . . 1 use P1 .
9.3 Heating Pump 1 ASD . P1_ASD DDC . . 1 . . . .
. ASD Controller . P1_ASD_CO CO . . . . 1 use SYS_PSP:SYS_PSP_SP .
10.1 Heating Pump 2 Control . P2 CR1 1 . . . . . .
10.2 Heating Pump 2 Run Hours . P2_TZ TZ . . . . 1 use P2 .
11 Heating Pump Program . P_PG PG . . . . 1 . .
12 Heating Pump Trendlog . P_TL TL . . . . 1 P1_ASD,SYS_PSP,SYS_PSP_SP .
13 Boiler Control Program . BLR_PG PG . . . . 1 . .
14.1 Boiler 1 Pump Control . BLR1_P CR1 1 . . . . . .
14.2 Boiler 1 Pump Run Hours . BLR1_P_TZ TZ . . . . 1 . .
14.3 Boiler 1 Supply Water Temp . BLR1_SWT PTS1 . . . 1 . . .
14.4 Boiler 1 SWT Trendlog . BLR1_SWT_TL TL . . . . 1 RWT,BLR1_P,BLR1_SWT .
15.1 Boiler 2 Pump Control . BLR2_P CR1 1 . . . . . .
15.2 Boiler 2 Pump Run Hours . BLR2_P_TZ TZ . . . . 1 . .
15.3 Boiler 2 Supply Water Temp . BLR2_SWT PTS1 . . . 1 . . .
15.4 Boiler 2 SWT Trendlog . BLR2_SWT_TL TL . . . . 1 RWT,BLR2_P,BLR2_SWT .
__.1 BoilerPump Control . BLR_P CR1 . . . . . As Required .
__.2 BoilerPump Run Hours . BLR_P_TZ TZ . . . . . As Required .
__.3 BoilerSupply Water Temp . BLR_SWT PTS1 . . . . . As Required .
__.4 BoilerSWT Trendlog . BLR_SWT_TL TL . . . . . As Required .
  Total   4 0 1 7 15
