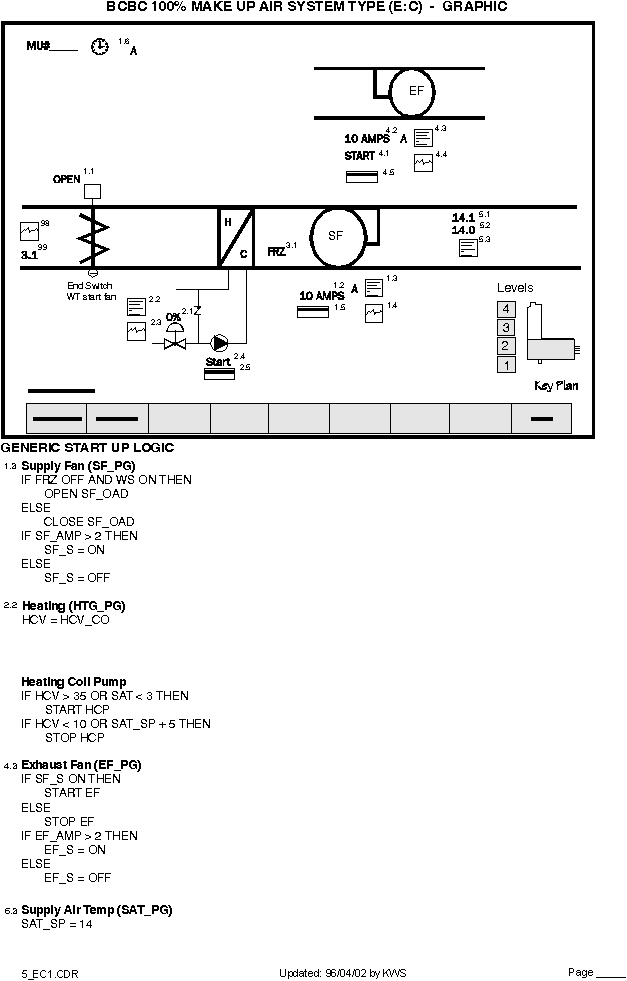

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.
| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | . | Hardware Point | . | Notes See Page # | Note # | |||||
| Point Description | System | Point | Point Type |
D0 | D1 | A0 | A1 | Virtual Point |
Comments | ||
| 1.1 | Supply Fan Outdoor Air Damper | . | SF_OAD | DA4/A | 1 | . | . | . | . | Wire end switch to SF | . |
| 1.2 | Supply Fan Amps | . | SF_AMP | CS1 | . | . | . | 1 | . | . | . |
| . | Supply Fan Status | . | SF_S | V | . | . | . | . | 1 | . | . |
| . | Cold Start | . | COLD_START | V | . | . | . | . | 1 | . | . |
| . | Once Flag | . | ONCE_FLAG | V | . | . | . | . | 1 | . | . |
| 1.3 | Supply Fan Program | . | SF_PG | PG | . | . | . | . | 1 | . | . |
| 1.4 | Supply Fan Trendlog | . | SF_TL | TL | . | . | . | . | 1 | SF_S,SF_AMP,SAP,SAP_SP | . |
| 1.5 | Supply Fan Run Hours | . | SF_TZ | TZ | . | . | . | . | 1 | . | . |
| 1.6 | Weekly Schedule | . | WS | WS | . | . | . | . | 1 | . | . |
| 2.1 | Heating Coil Valve | . | HCV | CV3 | . | . | 1 | . | . | . | . |
| . | Heating Coil Controller | . | HCV_CO | CO | . | . | . | . | 1 | use SAT:SAT_SP | . |
| . | Heating Coil Valve Ramp | . | HCV_RAMP | V | . | . | . | . | 1 | . | . |
| 2.2 | Heating Program | . | HTG_PG | PG | . | . | . | . | 1 | . | . |
| 2.3 | Heating Trendlog | . | HTG_TL | TL | . | . | . | . | 1 | HCV,SAT_SP,SAT,HCP | . |
| 2.4 | Heating Coil Pump | . | HCP | CR1 | 1 | . | . | . | . | . | . |
| 2.5 | Heating Coil Pump Run Hours | . | HCP_TZ | TZ | . | . | . | . | 1 | . | . |
| 3.1 | Freeze Control | . | FRZ | FRZ | . | 1 | . | . | . | . | . |
| 3.2 | Freeze Control Reset | . | FRZ_RESET | V | . | . | . | . | 1 | . | |
| . | Freeze Control Flag | . | FRZ_FLAG | V | . | . | . | . | 1 | . | |
| 7.1 | Exhaust Fan Start/Stop | . | EF | CR1 | 1 | . | . | . | . | . | . |
| 7.2 | Exhaust Fan Amps | . | EF_AMP | CS1 | . | . | . | 1 | . | . | . |
| . | Exhaust Fan Status | . | EF_S | V | . | . | . | . | 1 | . | . |
| 7.3 | Exhaust Fan Program | . | EF_PG | PG | . | . | . | . | 1 | . | . |
| 7.4 | Exhaust Fan Trendlog | . | EF_TL | TL | . | . | . | . | 1 | EF,EF_ASD | . |
| 7.5 | Exhaust Fan Run Hours | . | EF_TZ | TZ | . | . | . | . | 1 | . | . |
| 11.1 | Supply Air Temperature | . | SAT | DTS2 | . | . | . | 1 | . | . | . |
| 11.2 | Supply Air Temp Setpoint | . | SAT_SP | V | . | . | . | . | 1 | . | . |
| 11.3 | Supply Air Temp Program | . | SAT_PG | PG | . | . | . | . | 1 | . | . |
| Total | 3 | 1 | 1 | 3 | 20 | ||||||
