Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

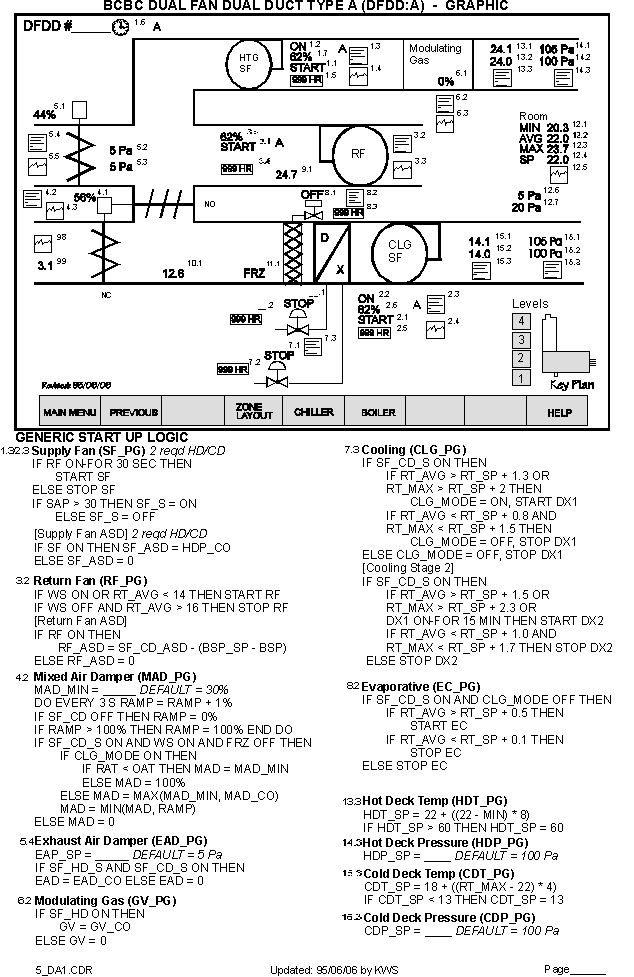

| Project Number: | Project Name: | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Graphic Logic Location | Point Name Mnemonic | . | Hardware Point | . | Notes See Page # | Note # | |||||
| Point Description | System | Point | Point Type | DO | D1 | A0 | A1 | Virtual Point |
Comments | ||
| 1.1 | Supply Fan Heating Start/Stop | . | SF_HD | CR1 | 1 | . | . | . | . | . | . |
| 1.2 | Supply Fan Heating Status | . | SF_HD_S | V | . | . | . | . | 1 | . | . |
| 1.3 | Supply Fan Heating Program | . | SF_HD_PG | PG | . | . | . | . | 1 | . | . |
| 1.4 | Supply Fan Heating Trendlog | . | SF_HD_TL | TL | . | . | . | . | 1 | "SF_HD,SF_HD_ASD,HDT,HDP" | . |
| 1.5 | Supply Fan Heating Run Hours | . | SF_HD_TZ | TZ | . | . | . | . | 1 | . | . |
| 1.6 | Weekly Schedule | . | WS | WS | . | . | . | . | 1 | . | . |
| 1.7 | Supply Fan Heating ASD | . | SF_HD_ASD | DDC | . | . | 1 | . | . | . | . |
| 2.1 | Supply Fan Cooling Start/Stop | . | SF_CD | CR1 | 1 | . | . | . | . | . | . |
| 2.2 | Supply Fan Cooling Status | . | SF_CD_S | V | . | . | . | . | 1 | . | . |
| 2.3 | Supply Fan Cooling Program | . | SF_CD_PG | PG | . | . | . | . | 1 | . | . |
| 2.4 | Supply Fan Cooling Trendlog | . | SF_CD_TL | TL | . | . | . | . | 1 | "SF_CD,SF_CD_ASD,CDT,CDP" | . |
| 2.5 | Supply Fan Cooling Run Hours | . | SF_CD_TZ | TZ | . | . | . | . | 1 | . | . |
| 2.6 | Supply Fan Cooling ASD | . | SF_CD_ASD | DDC | . | . | 1 | . | . | . | . |
| 3.1 | Return Fan Start/Stop | . | RF | CR1 | 1 | . | . | . | . | . | . |
| 3.2 | Return Fan Program | . | RF_PG | PG | . | . | . | . | 1 | . | . |
| 3.3 | Return Fan Trendlog | . | RF_TL | TL | . | . | . | . | 1 | "RF,RAT,BSP,RF_ASD" | . |
| 3.4 | Return Fan Run Hours | . | RF_TZ | TZ | . | . | . | . | 1 | . | . |
| 3.5 | Return Fan ASD | . | RF_ASD | DDC | . | . | 1 | . | . | . | . |
| 4.1 | Mixed Air Damper | . | MAD | DA2 | . | . | 1 | . | . | . | . |
| Mixed Air Damper Controller | . | MAD_CO | CO | . | . | . | . | 1 | use:CDT:CDT_SP | . | |
| Mixed Air Damper Ramp | . | RAMP | V | . | . | . | . | 1 | . | . | |
| 4.2 | Mixed Air Program | . | MAD_PG | PG | . | . | . | . | 1 | . | . |
| 4.3 | Mixed Air Trendlog | . | MAD_TL | TL | . | . | . | . | 1 | "SF_CD,FRZ,MAD,MAT" | . |
| 5.1 | Exhaust Air Damper | . | EAD | DA2 | . | . | 1 | . | . | . | . |
| Exhaust Air Damper Controller | . | EAD_CO | CO | . | . | . | . | 1 | use EAP:EAP_SP | . | |
| 5.2 | Exhaust Air Pressure | . | EAP | DPS | . | . | . | 1 | . | . | . |
| 5.3 | Exhaust Air Pressure Setpoint | . | EAP_SP | V | . | . | . | . | 1 | . | . |
| 5.4 | Exhaust Air Damper Program | . | EAP_PG | PG | . | . | . | . | 1 | . | . |
| 5.5 | Exhaust Air Damper Trendlog | . | EAD_TL | TL | . | . | . | . | 1 | "EAD,EAP,BSP,EAP_SP" | . |
| 6.1 | Gas Valve | . | GV | DDC | . | . | 1 | . | . | . | . |
| Gas Valve Controller | . | GV_CO | CO | . | . | . | . | 1 | use HDT:HDT_SP | . | |
| 6.2 | Heating Program | . | HD_PG | PG | . | . | . | . | 1 | . | . |
| 6.3 | Gas Valve Trendlog | . | GV_TL | TL | . | . | . | . | 1 | "GV,HDT,HDT_SP" | . |
| Cooling Mode | . | CLG_MODE | V | . | . | . | . | 1 | . | . | |
| 7.1 | Stage 1-DX | . | DX1 | CV3 | . | . | 1 | . | . | . | . |
| 7.2 | DX1 Run Hours | . | DX1_TZ | TZ | . | . | . | . | 1 | . | . |
| 7.3 | DX Program | . | CLG_PG | PG | . | . | . | . | 1 | . | . |
| __.1 | Stage-DX | . | DX____ | CV3 | . | . | . | . | . | As Required | . |
| __.2 | DXRun Hours | . | DX_TZ | TZ | . | . | . | . | . | As Required | . |
| 8.1 | Evaporative Cooling | . | EC | CR1 | 1 | . | . | . | . | . | . |
| 8.2 | Evaporative Cooling Program | . | EC_PG | PG | . | . | . | . | 1 | . | . |
| 8.3 | Evaporative Cooling Run Hours | . | EC_TZ | TZ | . | . | . | . | 1 | . | . |
| 9.1 | Return Air Temperature | . | RAT | DTS2 | . | . | . | 1 | . | . | . |
| 10.1 | Mixed Air Temperature | . | MAT | DTS1 | . | . | . | 1 | . | . | . |
| 11.1 | Freeze Control | . | FRZ | FRZ | . | 1 | . | . | . | . | . |
| 12.1 | Room Temperature Minimum | . | RT_MIN | V | . | . | . | . | 1 | . | . |
| 12.2 | Room Temperature Average | . | RT_AVG | V | . | . | . | . | 1 | . | . |
| 12.3 | Room Temperature Maximum | . | RT_MAX | V | . | . | . | . | 1 | . | . |
| 12.4 | Room Temperature Setpoint | . | RT_SP | V | . | . | . | . | 1 | . | . |
| 12.5 | Room Temperature Trendlog | . | RT_TL | TL | . | . | . | . | 1 | "MIN,AVG,MAX" | . |
| 12.6 | Building Pressure | . | BSP | DPS | . | . | . | 1 | . | . | . |
| 12.7 | Building Pressure Setpoint | . | BSP_SP | V | . | . | . | . | 1 | . | . |
| 13.1 | Supply Air Hot Deck Temp | . | HDT | DTS2 | . | . | . | 1 | . | . | . |
| 13.2 | Supply Air HD Temp Setpoint | . | HDT_SP | V | . | . | . | . | 1 | . | . |
| 13.2 | Supply Air HD Temp Program | . | HDT_PG | PG | . | . | . | . | 1 | . | . |
| 14.1 | Supply Air HD Pressure | . | HDP | DPS | . | . | . | 1 | . | . | . |
| 14.2 | Supply Air HD Pres Setpoint | . | HDP_SP | V | . | . | . | . | 1 | . | . |
| 14.3 | Supply Air HD Pres Program | . | HDP_PG | PG | . | . | . | . | 1 | . | . |
| Supply Air HD Pres Controller | . | HDP_CO | CO | . | . | . | . | 1 | use HDP:HDP_SP | . | |
| 15.1 | Supply Air Cold Deck Temp | . | CDT | DTS2 | . | . | . | 1 | . | . | . |
| 15.2 | Supply Air CD Temp Setpoint | . | CDT_SP | V | . | . | . | . | 1 | . | . |
| 15.3 | Supply Air CD Temp Program | . | CDT_PG | PG | . | . | . | . | 1 | . | . |
| 16.1 | Supply Air CD Pressure | . | CDP | DPS | . | . | . | 1 | . | . | . |
| 16.2 | Supply Air CD Pres Setpoint | . | CDP_SP | V | . | . | . | . | 1 | . | . |
| 16.3 | Supply Air CD Pres Program | . | CDP_PG | PG | . | . | . | . | 1 | . | . |
| Supply Air CD Pres Controller | . | CDP_CO | CO | . | . | . | . | 1 | use CDP:CDP_SP | . | |
| Total | 4 | 1 | 7 | 8 | 44 | ||||||
