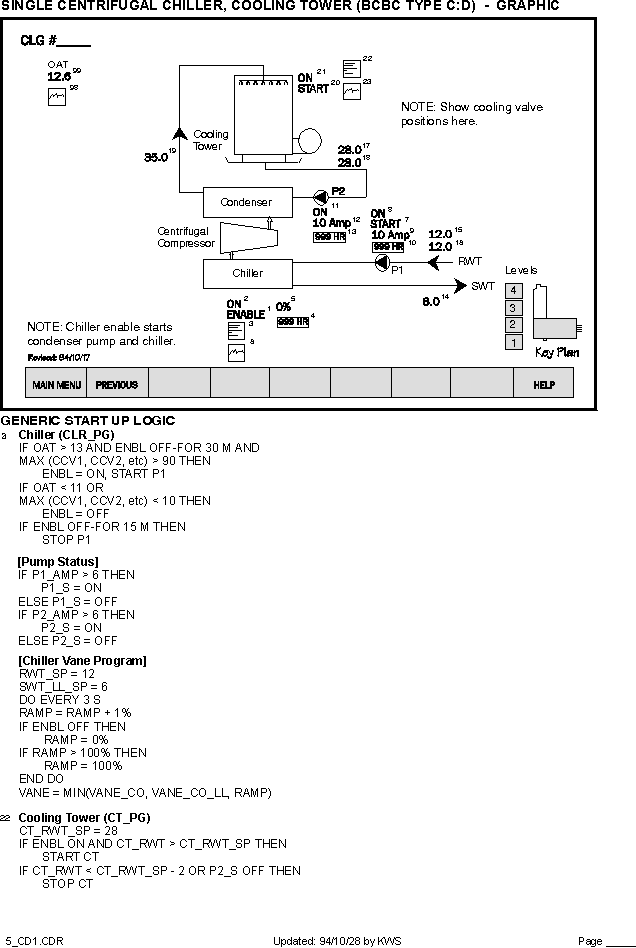

Part of the information displayed here for this preapproved system is available as a Microsoft Winword .doc file and part is available as a Microsoft Excel .xls file. Please click on both links and down load both file to be used with their respective programs to provide a complete printable Pre-approved system type.

Project Number: Project Name:
Graphic Logic Location Point Name Mnemonic .   . Notes See Page # Note
#
  Point Description System Point Point Type D0 D1 A0 A1

Virtual Point

 Comments
1 Chiller Control . ENBL CR1 1 . . . . . .
2 Chiller Status . S CRS . 1 . . . . .
3 Chiller Program . PG PG . . . . 1 . .
4 Chiller Run Hours . TZ TZ . . . . 1 . .
5 Chiller Vane . VANE DDC . . 1 . . . .
  Chiller Vane Controller . VANE_CO CO . . . . 1 use RWT:RWT_SP .
. Chiller Vane Low Limit Controller . VANE_CO_LL CO . . . . 1 use SWT:SWT_LL_SP .
. Chiller Vane Ramp . RAMP V . . . . 1 . .
6 Chiller Trendlog . TL TL . . . . 1 VANE,SWT,RWT,ENBL .
7 Chilled Water Pump . P1 CR1 1 . . . . . .
8 Chilled Water Pump Status . P1_S V . . . . 1 . .
9 Chilled Water Pump Amps . P1_AMP CS1 . . . 1 . . .
10 Chilled Water Pump Run Hours . P1_TZ TZ . . . . 1 . .
11 Condenser Pump Status . P2_S V . . . . 1 . .
12 Condenser Pump Amps . P2_AMP CS1 . . . 1 . . .
13 Condenser Pump Run Hours . P2_TZ TZ . . . . 1 . .
14 Supply Water Temperature . SWT PTS1 . . . 1 . . .
. Supply Water Low Limit Setpoint . SWT_LL_SP V . . . . 1 . .
15 Return Water Temperature . RWT PTS1 . . . 1 . . .
16 Return Water Setpoint . RWT_SP V . . . . 1 . .
17 Cooling Tower RW Temp . CT_RWT PTS1 . . . 1 . . .
18 Cooling Tower RW Setpoint . CT_RWT_SP V . . . . 1 . .
19 Cooling Tower SW Temp . CT_SWT PTS1 . . . 1 . . .
20 Cooling Tower Fan Control . CT CR1 1 . . . . . .
21 Cooling Tower Fan Status . CT_S CRS . 1 . . . . .
22 Cooling Tower Program . CT_PG PG . . . . 1 . .
23 Cooling Tower Trendlog . CT_TL TL . . . . 1 RWT,SWT,CT,OAT .
24 Chiller Weekly Schedule   WS WS         1
  Total   3 2 1 6 16
